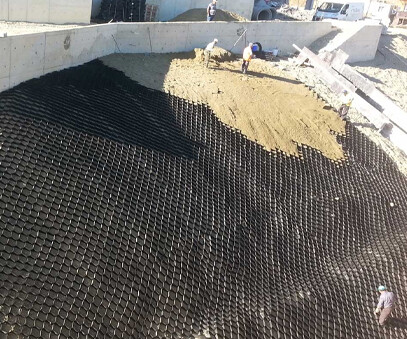

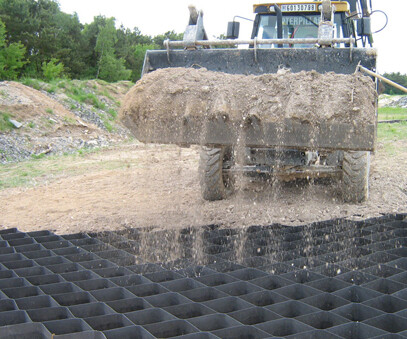

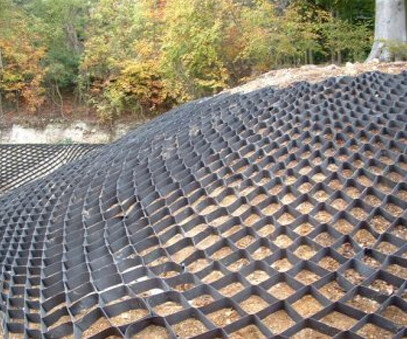

Plane geocell
The plane geocell has a certain strength and rigidity, can withstand the pressure and lateral force of the soil, and play a role in strengthening the soil. Its cell structure can disperse stress and improve the overall stability of the soil.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

Its main features include:

Good plane development: It can provide a larger reinforcement range in the horizontal direction.

Convenient construction: It is relatively easy to lay and fix, saving construction time and labor costs.

Plane geocells are widely used in the following aspects:

Filling projects: For example, in embankment filling, it can evenly distribute the load and reduce the uneven settlement of the filling.

For example, in a certain urban road filling project, the use of plane geocells ensures the stability and flatness of the embankment.

Land reclamation: Help improve soil structure and increase the carrying capacity of land.

For example, in the land reclamation of abandoned mining areas, plane geocells promote soil consolidation and vegetation growth.

Item ModelHeight(mm) Welding distance(mm)Sheet thickness(mm)Seam peel strength≥(N)Expanded Cell Size(mm)Expandedpanel size (m)
smoothtextured
TGLG-100-3301003301.11.51420244X2032.44X6.15
TGLG-150-3301502130244X2032.44X6.15
TGLG-200-3302002840244X2032.44X6.15
TGLG-100-3561003561.11.51420259X2242.56X6.52
TGLG-150-3561502130259X2242.56X6.52
TGLG-200-3562002840259X2242.56X6.52
TGLG-100-4001004001.11.51420295X2504X5
TGLG-150-4001502130295X2504X5
TGLG-200-4002002840295X2504X5
TGLG-100-4451004451.11.51420320X2872.56X8.35
TGLG-150-4451502130320X2872.56X8.35
TGLG-200-4452002840320X2872.56X8.35
TGLG-100-6601006601.11.51420488X4062.44X12.29
TGLG-150-6601502130488X4062.44X12.29
TGLG-200-6602002840488X4062.44X12.29
TGLG-100-7121007121.11.51420508X4752.56X13.72
TGLG-150-7121502130508X4752.56X13.72
TGLG-200-7122002840508X4752.56X13.72
