Steel-plastic geogrid

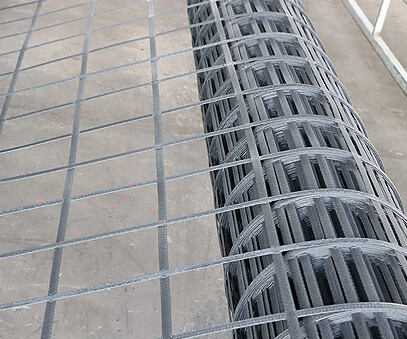

Steel-plastic geogrid is a geosynthetic material that is made of steel wire (or other high-strength metal wire) as the main load-bearing element and is wrapped with plastic (usually polyethylene or polypropylene) through a special process. It has extremely high tensile strength, can effectively enhance the stability of the soil, and withstand greater soil pressure and tension.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

Steel plastic geogrid has the following significant characteristics and advantages:

High strength: able to withstand large tensile and compressive forces, suitable for various complex engineering environments.

Corrosion resistance: Due to being wrapped in polyethylene, the steel wire has good corrosion resistance and can be used for a long time in harsh soil and water environments.

Good stability: It can effectively disperse soil stress and enhance soil stability.

Steel plastic geogrids are widely used in the following fields:

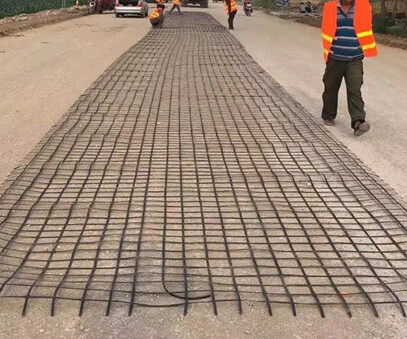

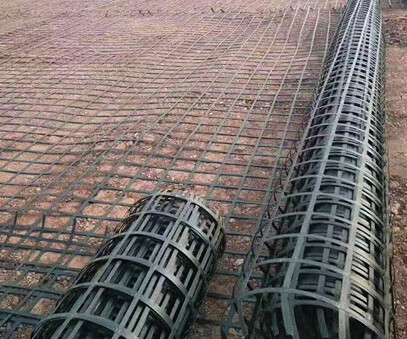

Road and railway subgrade reinforcement: Improve the bearing capacity of the subgrade and reduce uneven settlement of the subgrade.

Reinforcement of dams in hydraulic engineering: Enhancing the stability of dams to prevent slippage and collapse.

Slope protection: It can fix the soil on the slope surface, prevent soil erosion and landslides.

IndexGSZ30-30GSZ40-40GSZ50-50GSZ60-60GSZ80-80GSZ100-100GSZ150-150
Tensile Strength KN / m ( LD )≥30≥40≥50≥60≥80≥100≥150
Tensile Strength KN / m ( TD )≥30≥40≥50≥60≥80≥100≥150
Elongation Rate ( LD TD)≤2≤2≤2≤2≤2≤2≤2
Tensile strength at 1 % elongation ( LD )≥20≥32≥40≥48≥63≥81≥125
Tensile strength at 1 % elongation ( TD )≥20≥32≥40≥48≥63≥81≥125
Limit Peeifoece at Welded Bonded Point N≥100≥100≥100≥100≥100≥100≥100
