Unidirectional stretch geogrid

Unidirectional stretch geogrid
It has extremely high tensile strength and rigidity in the tensile direction, which can effectively enhance the stability of the soil and withstand greater soil pressure and tension. When subjected to stress, the elongation is low, which can maintain the stability of the soil and reduce the deformation of the soil.
Tel : +86 15376152730
Whatsapp : +86 15376152730
Email :info@dingrunmaterial.com

Product Description

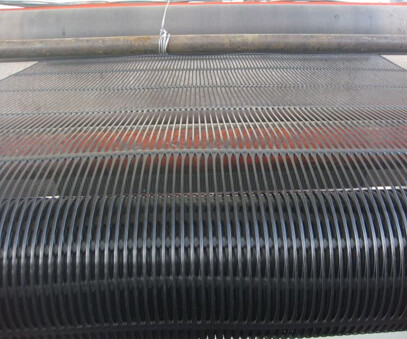

Unidirectional tensile geogrid is made by extruding, punching, and longitudinally stretching polymer materials.

Its main characteristics are:

Unidirectional high strength: It has extremely high tensile strength in one direction, which can effectively limit the displacement of soil in that direction.

Good anti-aging performance: the performance remains relatively stable during long-term use.

High friction coefficient with soil: enhances the interaction between the grid and the soil.

Unidirectional tensile geogrids have a wide range of applications:

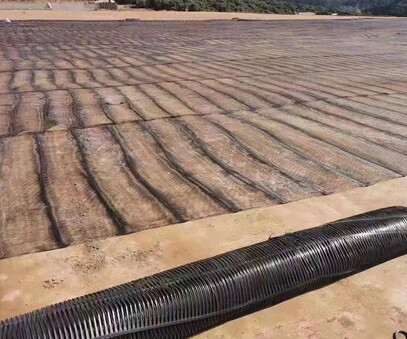

Fill engineering: such as embankments, fill slopes, etc., can improve the stability of fill and reduce settlement.

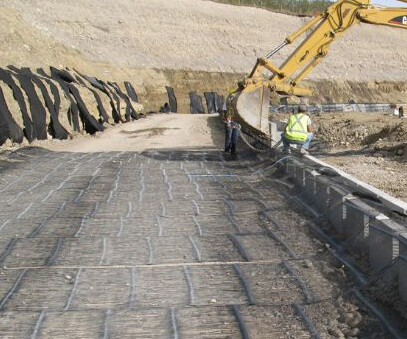

Retaining wall engineering: As a reinforcing material, it enhances the stability of the retaining wall.

LtemTensile strength KN/mElongation Rate %Tensile strength with 2% Srain KN/mTensile strength with 5% Srain KN/m
TGDG 35≥35≤10≥10≥20
TGDG 50≥50≤10≥12≥28
TGDG 80≥80≤10≥26≥48
TGDG 110≥110≤10≥32≥64
TGDG 120≥120≤10≥38≥74
