HDPE geomembrane for landfill liner

›

‹

›

HDPE geomembrane for landfill liner
Good impermeability: stops leachate from leaking into soil and groundwater.
High chemical resistance: withstands corrosive landfill waste.
Long service life: stable under long-term buried conditions.
UV resistant for exposed landfill cover.
Tel : +86 15376152730
Whatsapp : +86 15376152730
Email :info@dingrunmaterial.com

Product Description

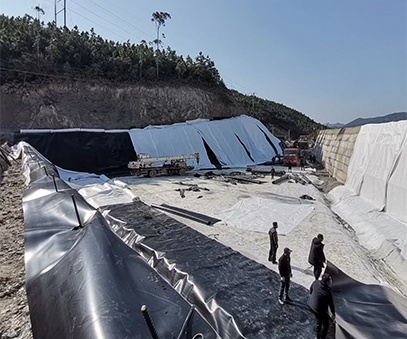

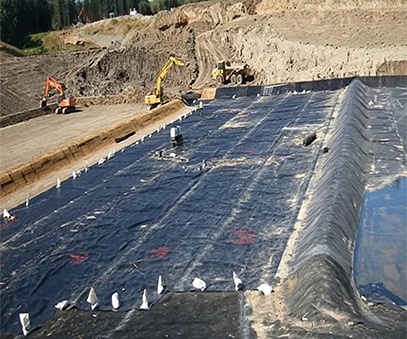

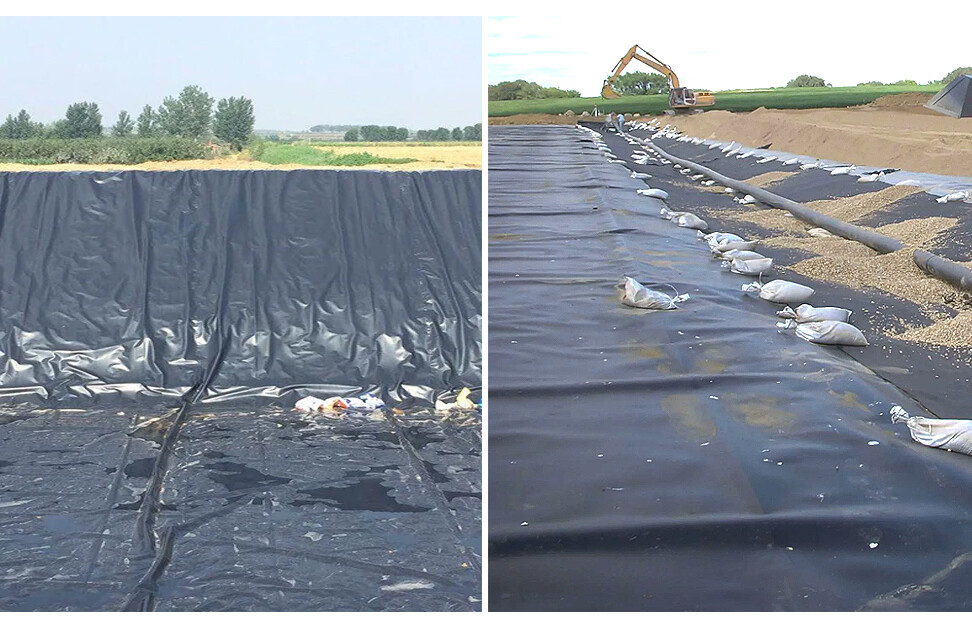

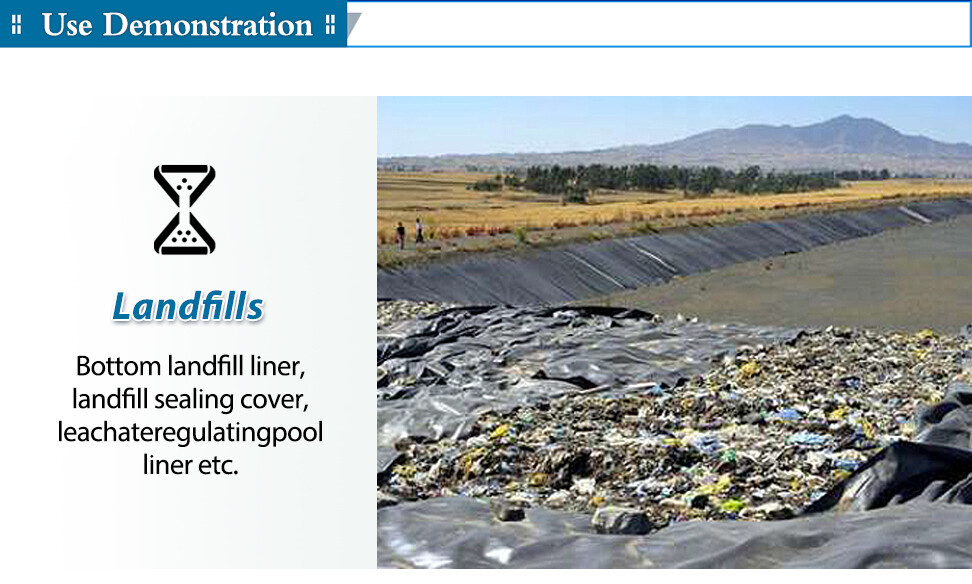

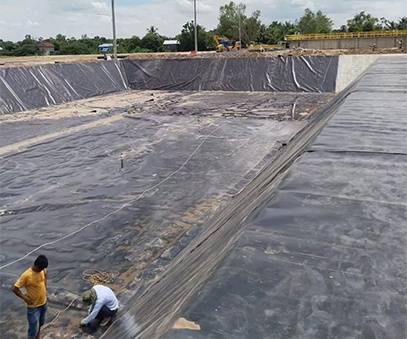

HDPE geomembrane is the primary anti-seepage liner widely adopted in landfill projects.

It blocks leachate, the toxic liquid generated by waste decomposition, from penetrating into soil and underground water, which protects local groundwater resources and soil environment.

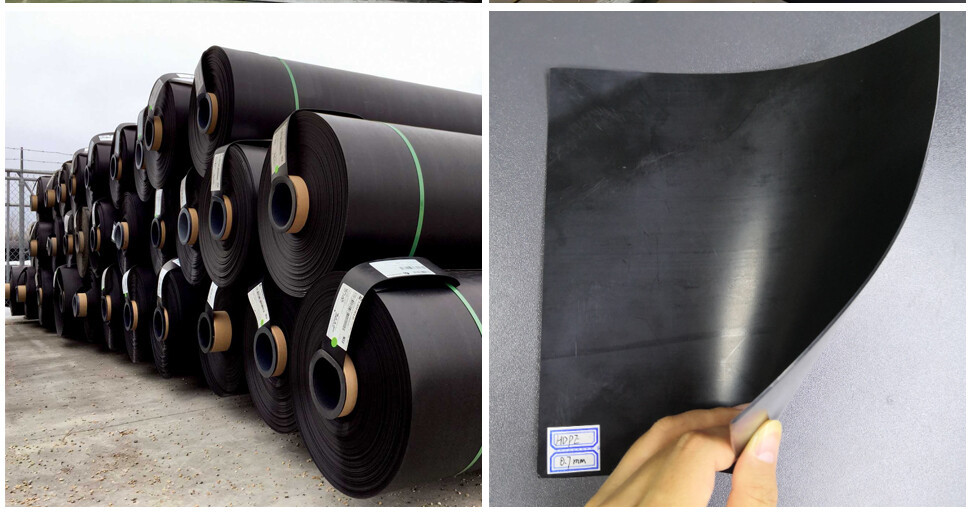

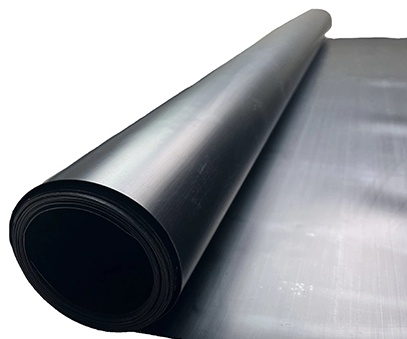

Made of high-density polyethylene, this geomembrane features excellent chemical corrosion resistance. It stays stable when contacting various waste leachate with complex PH value.

It can keep reliable performance for decades under buried conditions. We supply both smooth and textured surface options. Textured geomembrane provides higher friction for steep landfill slopes to avoid sliding.


Our HDPE landfill geomembrane can be customized in thickness from 0.75mm to 2.5mm. All products pass third-party lab testing.

We provide shipping solutions including DDP to African ports. Send email for data sheet, test certificate and quotation.


HDPE Geomembrane(GH-2TK GH-2T2)Technical Data(GB/T 17643-2011)


              Ltem    Value
Thickness mm0.751.001.251.502.002.503.00
Density g/cm3≥0.940
Rough Height mm≥0.25
Tensile yield strength (TD / MD )≥11≥15≥18≥22≥29≥37≥44
Tensile fracture strength ( TD / MD )(N/mm)≥8≥10≥13≥16≥21≥26≥32
Elongation at Yield ( TD / MD )≥12
Elongation ( TD / MD )%≥100
Angle Tear Load ( TD / MD )N≥93≥125≥160≥190≥250≥315≥375
Puncture Strength N≥200≥270≥335≥400≥535≥670≥800
Tensile Load Stress Cracking(h)≥300
Carbon Black Content%2.0~3.0
Garbon Black DispersionThere should be no more than 1 level 3 in 10 data, and levels 4 and 5 are not allowed
Oxidation Induction Time(OIT ) minAtmospheric pressure oxidation induction time ≥100
Atmospheric pressure oxidation induction time ≥400
85°C Thermal Aging %≥55
UV-≥50
