Geomembrane
Geomembrane

Geomembrane welding machine
Generally divided into two categories:

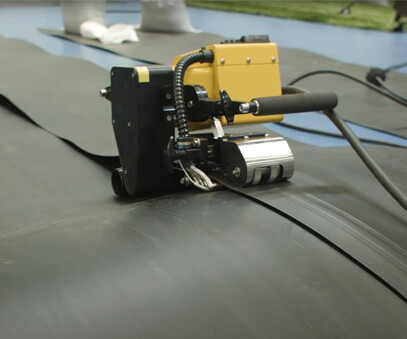

Hot wedge welding machine
Working principle: Heat is transferred to the geomembrane by heating the wedge block, causing the surface of the geomembrane to melt, and then the melted parts are fused together under a certain pressure to form a weld.
Scope of application: Suitable for welding geomembranes of various thicknesses and materials, such as HDPE, LDPE, etc.
Extrusion welding machine
Working principle: Use an extruder to extrude welding rods of the same material as the geomembrane, and fuse them with the geomembrane to be welded while the welding rods melt, completing the welding process.
Scope of application: Commonly used for welding complex parts, such as internal and external corners, repair welding, etc., as well as occasions with high requirements for welding strength.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

Geomembrane welding machine is a specialized equipment used for welding geomembranes.

Geomembranes are commonly used in fields such as water conservancy, environmental protection, transportation, and construction to provide waterproofing, isolation, and other functions. The geomembrane welding machine can firmly connect two pieces of geomembrane together through heating, pressure and other methods, ensuring the sealing and strength of the connection.


Common types of geomembrane welding machines include:

1.Hot air welding machine: uses hot air to heat and weld geomembranes.

For example, in some large-scale landfill anti-seepage projects, hot air welding machines can efficiently complete the welding work of large-area geomembranes.

2.Extrusion welding machine: Welding is achieved by extruding plastic welding rods.

For example, in some hydraulic engineering projects that require high welding quality, extrusion welding machines can provide more reliable welding results.

DescriptionGeomembrane Welding MachineOverlap WidthSeam Strength
Item No.SWT-NS900DSeam Width15 mm*2, Interior Cavity 15 mm
Voltage220V (Customized Acceptable)Welding Speed1-5M/Min(Adjustable)
Frequency50/60HzThickness Welded1-3mm(Single Layer)
Power1800W / 1650WWelding Temperature50 - 450℃(Adjustable)
Weight (KG)9 KGSeam Strength>85% Welded Layer
