Geomembrane
Geomembrane

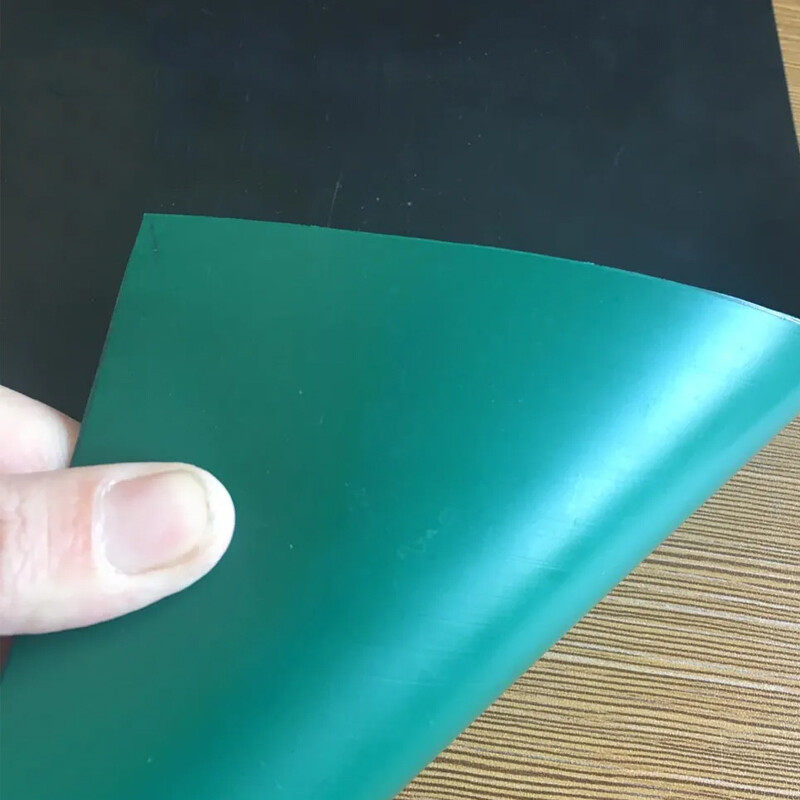

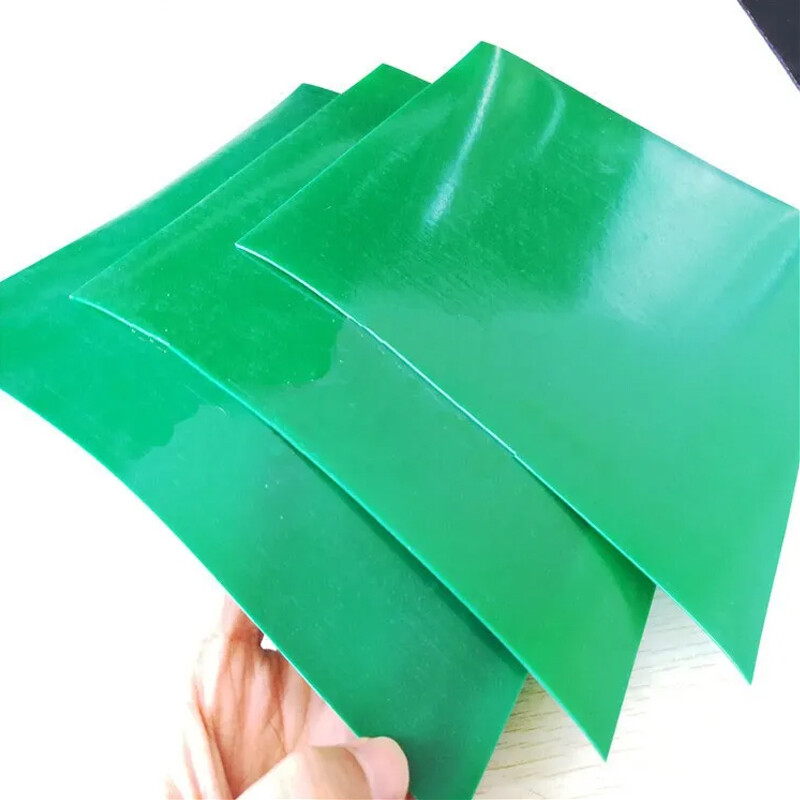

PVC geomembrane
The common thickness of PVC geomembrane is around 0.2mm to 2.5mm, and the appropriate thickness specification can be selected according to specific engineering needs. Usually has a smooth surface and a variety of colors, such as black, blue, etc.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

PVC geomembrane is a geomembrane made of polyvinyl chloride (PVC) as the main raw material.

It has the following characteristics:

Good chemical corrosion resistance: It can resist the erosion of various chemical substances.

Certain low temperature resistance.

Relatively high strength: It has good tensile and tear resistance.

In practical applications, PVC geomembrane is often used in the following aspects:

Water conservancy projects: such as channel seepage prevention, dam seepage prevention, etc.

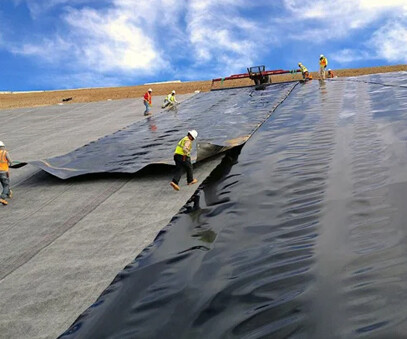

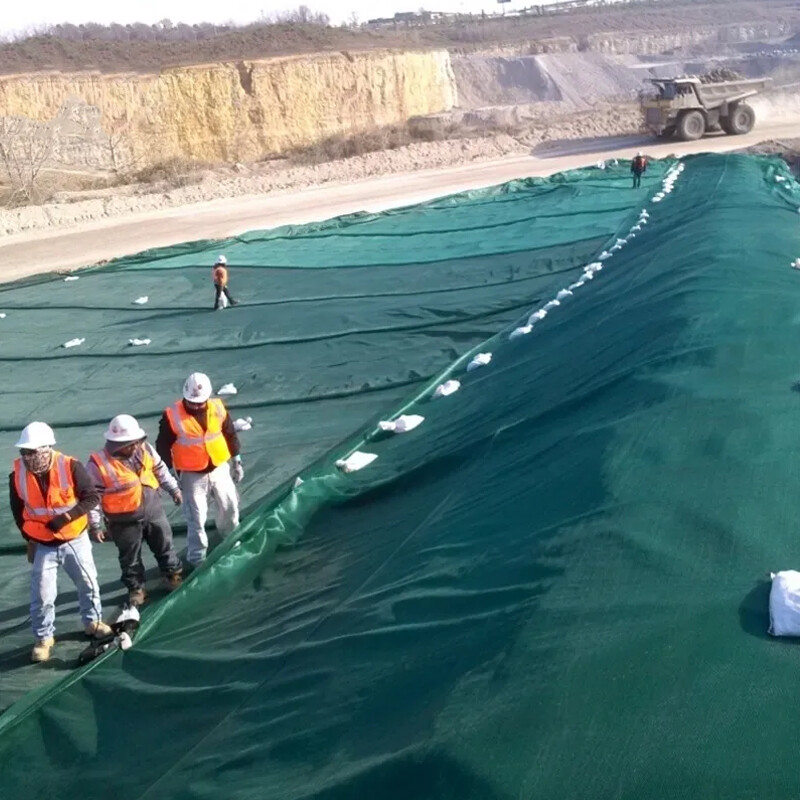

Environmental protection projects: including covering and anti-seepage of landfills, etc.

Aquaculture: used for waterproofing and anti-seepage of fish ponds, shrimp ponds, etc.

                 Ltem

                   I型

                  II型

Tensile strengh (MPa)≥

  8.0

  12.0

Elongation at Break %

  200

  250

Size change rate in heat treatment%

  3.0

  2.0

Bending in Low temperature °C

  -20°C  No cracks

  -25°C  No cracks

Anti-penetrating

  Not Leaking

Impermeability

  Impermeable
