Geotextile bags
Geotextile bags

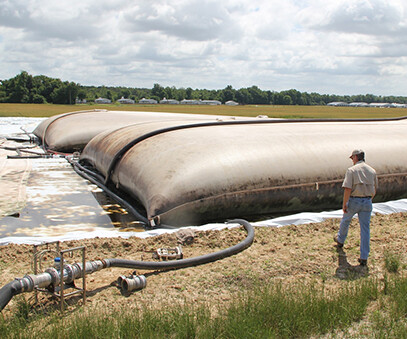

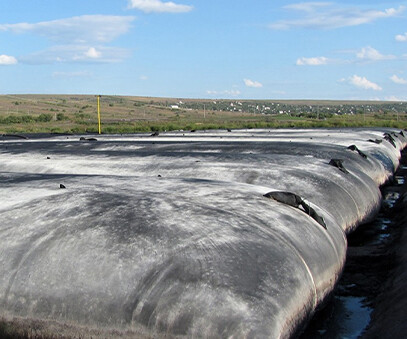

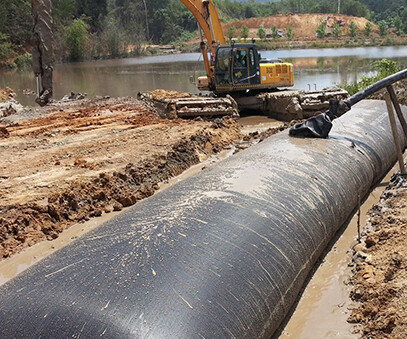

Geotextile dewatering tube bags
Geotextile dewatering tube bag utilizes the permeability and interception effect of geotextile to quickly and effectively separate the water in mud or sludge and improve the dewatering efficiency. By controlling the dewatering time and pressure, different degrees of dewatering effect can be achieved to meet the requirements of different projects.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

Its main features include:

1. Good drainage performance: By utilizing the permeability of geotextile and the structure of tube bag, the internal water can be quickly discharged.

2. Filtration and separation effect: Geotextile can effectively filter impurities, prevent soil particles from being lost with water flow, and realize mud-water separation at the same time.

3. Compression resistance: It can still maintain good drainage function when subjected to external pressure, and is not easy to deform and damage.

Geotextile dewatering tube bag has many application scenarios:

1. Water conservancy project: For example, in river channel regulation, it can be used to discharge water from the river bank and enhance the stability of the river bank.

2. Construction: Accelerate the removal of groundwater in foundation engineering and shorten the construction period.

3. Environmental governance: Used to treat sewage, sludge, etc. to achieve dehydration and solid-liquid separation.

ItemUnitTechnical Parameter
Tube 500Tube 750Tube 1000
Breaking strengthMDKN/m >=70120200
CDKN/m >=90120200
Elongation of breakMD%<=202020
CD%<=101010
Sewing Tensile strength>=%808080
Bursting Strength(CBR)KN>=81418
Equivalent opening size(O90)mm0.2-0.60.2-0.60.2-0.6
Permeability(Q50)L/m2/s>=201315
UV-resistance(500HRS strength retention)%>=908080
