Geotextile
Geotextile

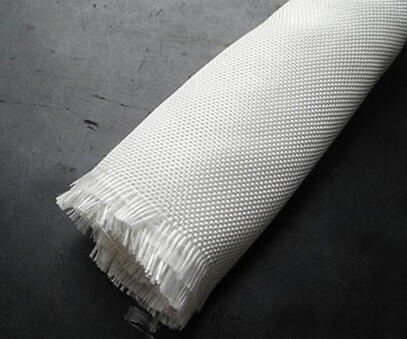

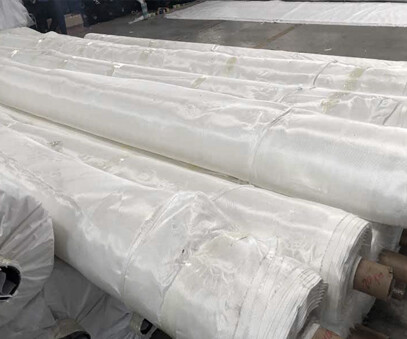

Plastic flat fiber woven geotextile
The characteristics of the woven structure and flat wire make it have high tensile strength and tear strength, able to withstand large stress and strain, and can effectively withstand the effects of soil and other external loads in geotechnical applications. Its woven structure forms a certain amount of pores, allowing water to pass more smoothly within its plane, playing a role in drainage.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

It is woven from plastic flat wire and has the following characteristics:

Good stability: The chemical properties of the material are stable and are not easily affected by the natural environment and deteriorate. For example, it can still maintain its performance under long-term exposure to sunlight, wind and rain.

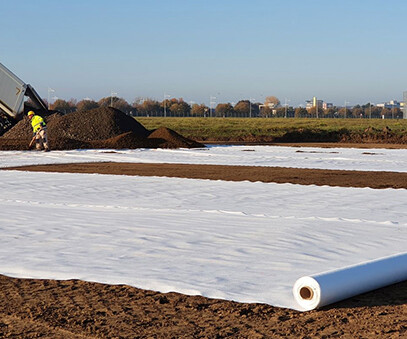

High strength and stiffness: The woven structure gives it high strength and stiffness, and it can withstand greater pressure and tension. For example, in reinforced soil engineering, it can effectively enhance the bearing capacity of the soil.

Large pores: It is conducive to the circulation of water and air, and performs well in some projects that require drainage and ventilation.

LtemLndex
20-1530-2240-2850-3560-4280-56100-70
Breakage Strength KM/M≥(LD)203040506080100
Breakage Strength KM / m ≥( TD )15222835425670
Elongation Rate % ≤( LD , TD)28
Trapozoidal Tearing Strength Kn≥(LD )0.30.450.50.60.751.01.2
Burst Strength Kn≥1.62.43.24.04.86.07.5
Vertical Permeabilty Coefficient cm / s10-1~10-3
Sieve size ( O95.) mm0.08~0.5
Unit weight g / m2120160200240280340400
Variation%±10
