Geotextile bags
Geotextile bags

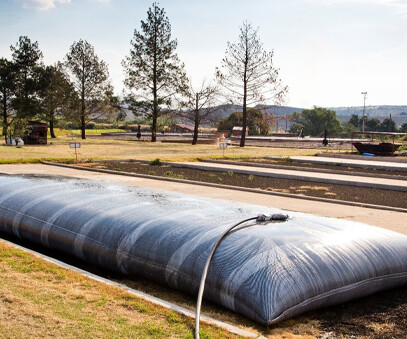

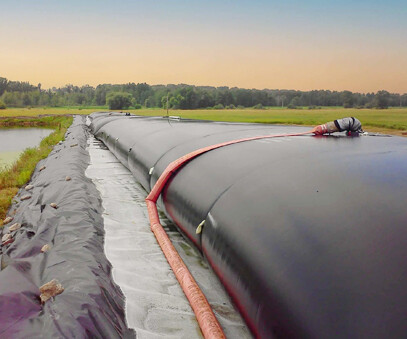

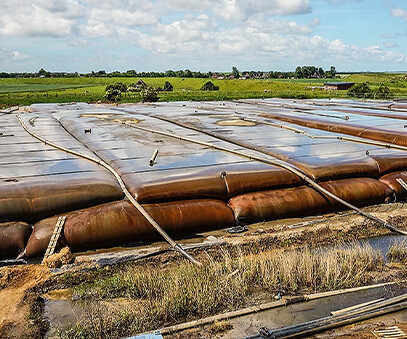

Geotextile tubes for sludge dewatering
Geotextile dewatering tube bag utilizes the permeability and interception effect of geotextile to quickly and effectively separate the water in mud or sludge and improve the dewatering efficiency. By controlling the dewatering time and pressure, different degrees of dewatering effect can be achieved to meet the requirements of different projects.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

Its main features are:

1. Excellent filtration performance: The geotextile has a fine pore structure, which can effectively intercept solid particles in the sludge while allowing water to pass through, thereby achieving efficient dehydration.

2. High strength and durability: It can withstand the weight of the sludge and the pressure during the dehydration process, and is not easy to break.

3. Large volume: It can accommodate a large amount of sludge and improve the treatment efficiency.

Geotextile tube bags for sludge dewatering are used in the following aspects:

1. Sewage treatment plants: Treat a large amount of sludge, reduce the water content of the sludge, and facilitate subsequent transportation and disposal.

2. Industrial wastewater treatment: Dewatering the sludge generated during industrial production.

3. River dredging project: Dewatering the sludge generated during dredging to reduce the impact on the environment.

ItemUnitTechnical Parameter
Tube 500Tube 750Tube 1000
Breaking strengthMDKN/m >=70120200
CDKN/m >=90120200
Elongation of breakMD%<=202020
CD%<=101010
Sewing Tensile strength>=%808080
Bursting Strength(CBR)KN>=81418
Equivalent opening size(O90)mm0.2-0.60.2-0.60.2-0.6
Permeability(Q50)L/m2/s>=201315
UV-resistance(500HRS strength retention)%>=908080
