Geotextile

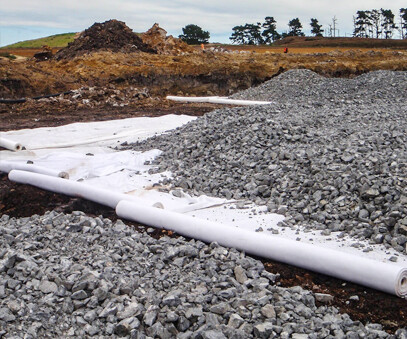

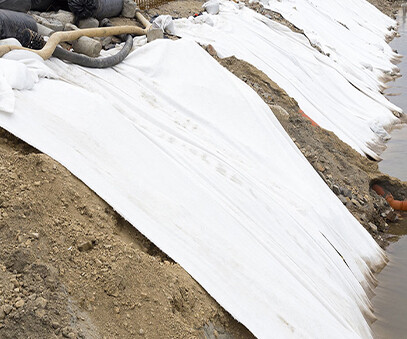

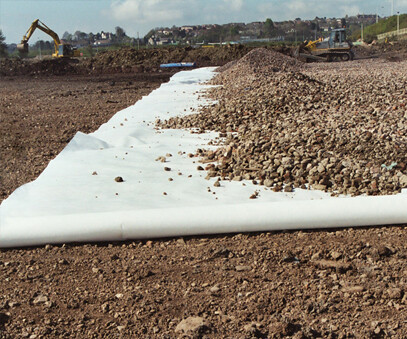

Staple fiber needle-punched nonwoven geotextile
After being needle-punched, the short-fiber needle-punched nonwoven geotextile has high tensile strength and tear strength, and can withstand large external forces. It is also light, soft, easy to lay and install, and can improve construction efficiency.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

It is made of short fibers through a needle punching process and has the following characteristics:

Good air permeability: It allows gas and water to pass freely, which is conducive to soil breathing and drainage. For example, in greening projects, it helps the growth of plant roots and water penetration.

Good flexibility: It can adapt to the deformation of different terrains and engineering structures and has good ductility. For example, in slope protection projects, it can adjust with the slight displacement of the slope and will not break easily.

Relatively low cost: The production process is relatively simple and the price is relatively affordable, which makes it advantageous in some projects that are more cost-sensitive.

    Ltem Value
100150200250300350400450500600800notes
Weight variation%-8-8   -8-8-7-7-7-7-6-6-6
Thickness mm≥0.91.31.72.12.42.73.03.33.64.15.0
Width Variation %-0.5
Breakinq Strenath KN / m≥2.54.56.58.09.011.512.014.016.019.025.0MD and  TD
Elongation at Break %25~100
CBR Mullen Burst Strenth KN≥0.30.60.91.21.51.82.12.42.73.24.0
Sieve Size 90 O 95 mm0.07~0.2
Vertical Permeability Coeficient cm / sK*(10-1~10-3) K=1.0~9.9cm/s
Tear Strengh KN≥0.080.120.160.200.240.280.330.380.420.460.6MD and  TD
