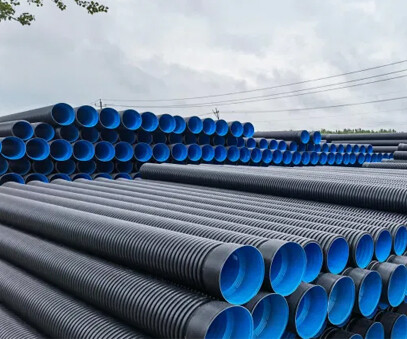

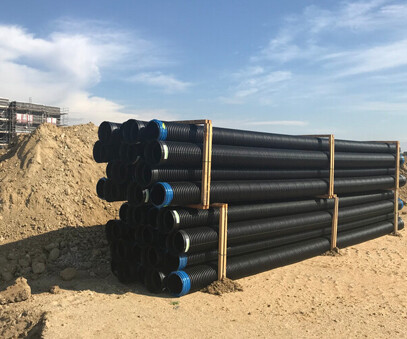

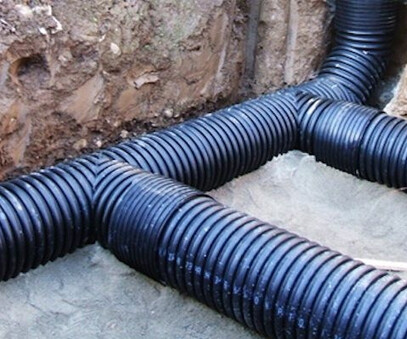

Hdpe double wall corrugated pipe
Mainly made of high-density polyethylene (HDPE) material. HDPE has good corrosion resistance, aging resistance, wear resistance and flexibility, and can adapt to different soil environments and engineering requirements.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

Its main features are:

1. Excellent resistance to external pressure: The unique double-wall structure enables it to withstand greater external pressure and is not easy to deform.

2. Large flow: The inner wall is smooth, the water flow resistance is small, and the water flow capacity is strong.

3. Good chemical stability: Acid and alkali resistant, corrosion resistant, and can adapt to a variety of harsh environmental conditions.

4. Light weight and convenient construction: easy to transport and install, reducing construction costs and labor intensity.

2. Low cost: Compared with traditional pipes, it has a higher cost performance.

HDPE double-wall corrugated pipe has many application areas:

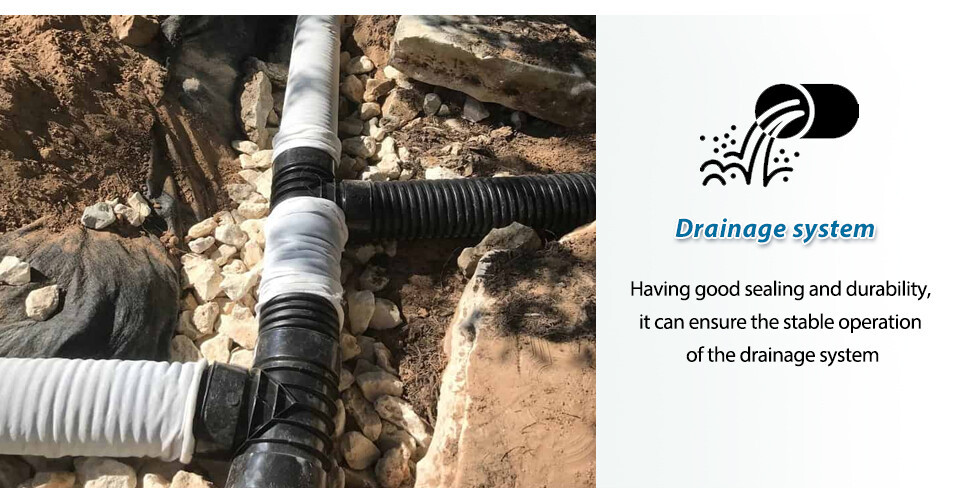

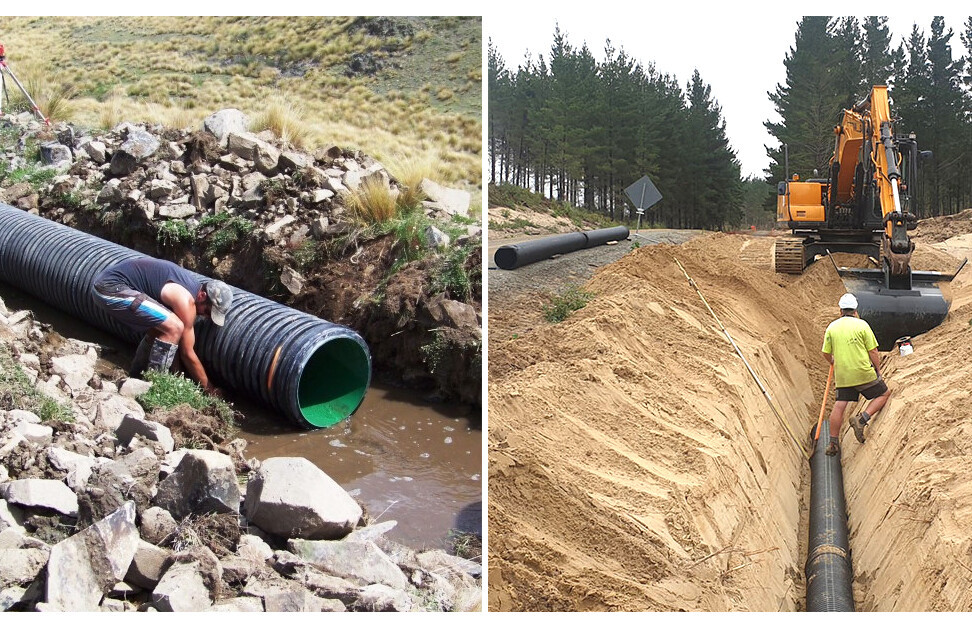

1. Municipal drainage: used for urban sewage and rainwater discharge pipeline systems.

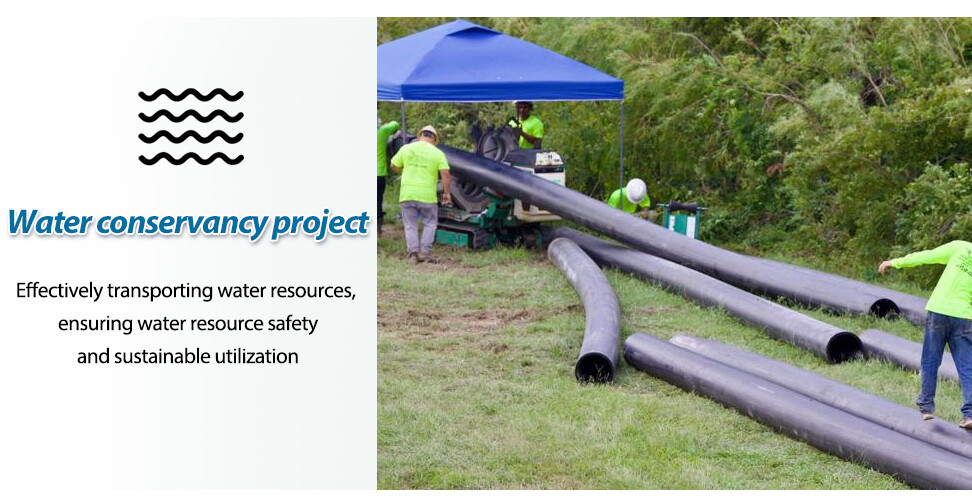

2. Farmland irrigation: transport farmland water to ensure the irrigation needs of crops.

3. Communication cable sheath: protect communication cables from external damage.

nominal outside diameterDN/ON

Minimum average outer diameter dcm.min

Maximum average outer diameter dcm.min

Minimum Average Inner Diameter dcm.min

Minimum layer wall thickness emin

Minimum inner wall thickness  e1min

length of engagement

amin

110109.4110.4901.00.832
125124.3125.41051.11.035
160159.1160.51341.21.042
200198.8200.61671.41.150
250248.5250.82091.71.455
315313.2316.02631.91.662
400397.6401.23352.32.070
500497.0501.54182.82.880
630626.3631.95273.33.393
800795.2802.46694.14.1110
1000994.01003.610055.05.0130
12001192.81203.610055.05.0150
