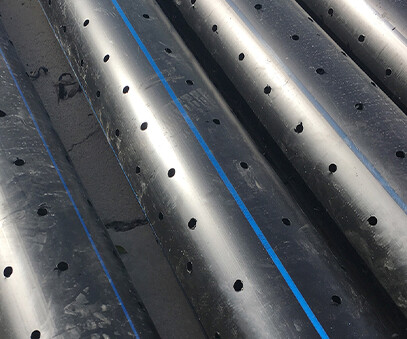

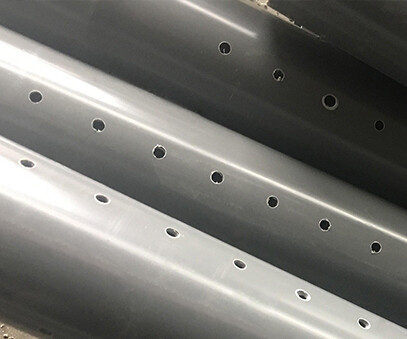

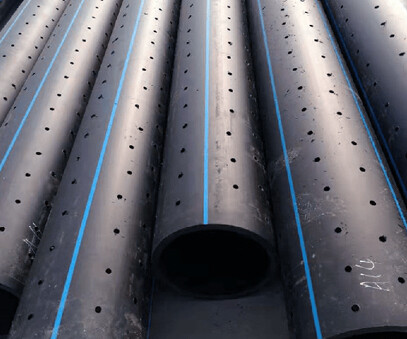

HDPE Perforated pipe
The small holes or perforations in perforated pipe allow liquids to quickly penetrate into the surrounding soil, allowing for efficient drainage. This type of drainage can effectively lower the water table, preventing soil ponding and flooding problems.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

HDPE perforated pipes have many excellent characteristics:

Strong corrosion resistance: able to maintain stability in environments with various chemicals and not easily corroded.

High strength: It has good compressive and tensile resistance.

Good wear resistance: able to withstand certain friction and wear during use.


It has a wide range of applications in the following fields:

Drainage engineering: For example, in municipal drainage systems, it is used to collect and discharge rainwater and sewage.

Underground infiltration system: helps to replenish and conserve groundwater.

For example, in some new road drainage projects in cities, the use of HDPE perforated pipes can effectively remove water from the road surface and ensure the normal use of the road; In some ecological restoration projects, the installation of HDPE perforated pipes can promote rainwater infiltration into the ground and supplement groundwater resources.

National standard nominal wall thickness of water supply pipe

GB/T 13663.2-2018

Nominal Size

SDR41

SDR33

SDR26

SDR21

SDR17

SDR13.6

SDR11

SDR9

PE80 Nominal Press (Mpa)
0.320.40.50.60.81.01.251.6
PE100 Nominal Press (Mpa)
0.40.50.60.81.01.251.62.0

DN(mm)

TK(mm)

TK(mm)

TK(mm)

TK(mm)

TK(mm)

TK(mm)

TK(mm)

TK(mm)

16-----

2.3
20-----
2.32.3
25-----2.32.33.0
32----2.32.33.03.6
40
---2.32.43.03.74.5
50--2.32.43.03.74.65.6
63--2.53.0
3.84.75.87.1
75--2.93.64.55.66.88.4
90--3.54.35.46.78.210.1
110--4.25.36.68.110.012.3
125--4.86.07.49.211.414.0
140--5.46.78.310.312.715.7
160--6.27.79.511.814.617.9
180--6.98.610.713.316.420.1
200--7.79.611.914.718.222.4
225--8.610.813.416.620.525.2
250--9.611.914.818.422.727.9
280--10.713.416.620.625.431.3
3157.79.712.115.018.723.228.635.2
3558.710.913.616.921.126.132.239.7
4009.812.315.319.123.729.436.344.7
45011.013.817.221.526.733.140.950.3
50012.315.319.123.929.736.845.455.8
56013.717.221.426.733.241.250.862.5
63015.419.324.130.037.446.357.270.3
71017.421.827.233.942.152.264.579.3
80019.624.530.638.147.458.872.689.3
90022.027.634.442.953.366.281.7
-
100024.530.638.247.759.372.590.2-
1200
29.436.745.957.267.988.2--
140034.342.953.566.782.4102.9--
1600
39.249.061.2
76.294.1117..6--
180043.854.569.185.7105.9---
200048.860.676.995.2117.6---
225055.070.086.0107.2----
250061.277.795.6119.1----
