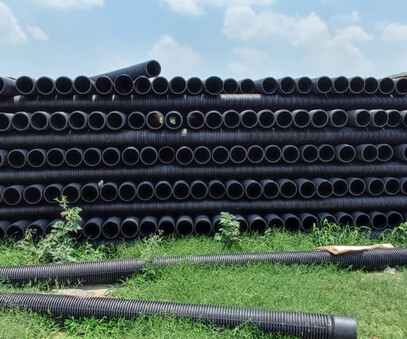

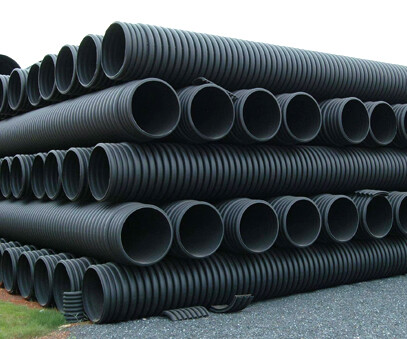

HDPE carbon corrugated pipe
Power engineering: can be used for cable protection pipes to protect cables from damage by the external environment.
Municipal engineering: used for municipal drainage, sewage and other pipeline systems, as well as the construction of urban underground comprehensive pipeline corridors.
Tel : +86 15563581786
Whatsapp : +86 15563581786
Email :info@dingrunmaterial.com

Product Description

HDPE carbon corrugated pipe is a pipe with many excellent properties.

1. Features

1. High strength: can withstand greater external pressure, not easy to deform and rupture.

For example, in some occasions that need to be buried deep or bear heavy loads, such as drainage pipes under roads, HDPE carbon corrugated pipes can maintain good performance.

2. Good corrosion resistance: can resist the erosion of various chemicals and extend service life.

Even in harsh chemical environments, such as underground pipeline laying near chemical plants, it can operate stably.

3. Good flexibility: easy to bend and construct, adapt to complex terrain and pipeline layout.

Like laying in mountainous areas or beside winding roads, its flexibility has a great advantage.

2. Application areas

1. Power engineering: as a protective casing for cables.

2. Communication engineering: protect communication cables.

3. Municipal drainage: used in urban drainage systems.

Material

PE polyethylene

Operating temperature

-40℃~+90℃

Color

Black,other color available upon request

Performance

Test conditions (state)

Test method

Test data

Data unit

Melt flow rate

230℃

ASTM D1238

2.0

g/10min

Density

--

ASTM D792

0.9

g/cm2

Tensile strength at yield point

--

ASTM D638

265

g/cm2

Elongation at yield point

--

ASTM D638

8

%

Flexural elasticity system

--

ASTM D790

13100

kg/cm2

Rockwell hardness

--

ASTM D785

81

R scale

Heat deformation temperature

--

ASTM D648

90

°C

Izod impact strength

--

ASTM D256

18/137

kg-cm/cm

Drop ball impact strength

--

LCY

22

ft-lb

Shrinkage

--

ASTM D955

14

%

Hose specifica tions

Inner diameter (mm)

Outer diameter (mm)

Wall thicknes s(mm)

Weight(k g/m)

Pitch(m m)


OD and Height( m)

Packagi ng unit (m)

AD42.0

30.0± 2.0

42.0± 1.0

0.95±0.2 5

0.28

10

0.90*0.5 0


200

AD67.0

50.0± 2.0

67.0± 1.0

1.25±0.3 5

0.45

16

1.40*0.5 5

200

AD105.0

80.0± 3.0

105.0± 3.0

1.35±0.4 5

0.82

26

1.60*0.6 0

100

AD128.0

100.0± 4.0

128.0± 3.0

1.70±0.8

1.20

33

1.80*0.8 0

100/200

AD185.0

150.0± 4.0

185.0± 5.0

2.10±0.9

2.4

50

2.2*1.2

50

AD280.0

200.0± 4.0

280.0± 5.0

2.15±0.8 5

4.0

66

2.4*1.4

40

Note: The above table refers to the following standards:GB/T13381.9
